1.8mm Single Motor Flap Barrier Access Control System Swing Gate Turnstile

Product Categories
SHENZHEN UNISEC TECHNOLOGY CO.,LTD
Contact Now

1.8mm Single Motor Flap Barrier Access Control System Swing Gate Turnstile

  • 1
  • 2

Brand Name : UNIQSCAN

Model Number : UT570

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1

Price : negotiable

Payment Terms : T/T, Western Union

Delivery Time : Shipment will take 15 days after receipt of full payment

Packaging Details : carton package

Product name : swing turnstile gate

Materia : 304# stainless steel/SS304

Lane width : ≤1200mm

Swing arm transmission angle : 180 degrees

Type : brushless moter

speed : 35-40 person/min

Thickness : 1.8mm

Dimension : 168*1050mm

Contact Now

1.8mm Single Motor Flap Barrier Access Control System Swing Gate Turnstile

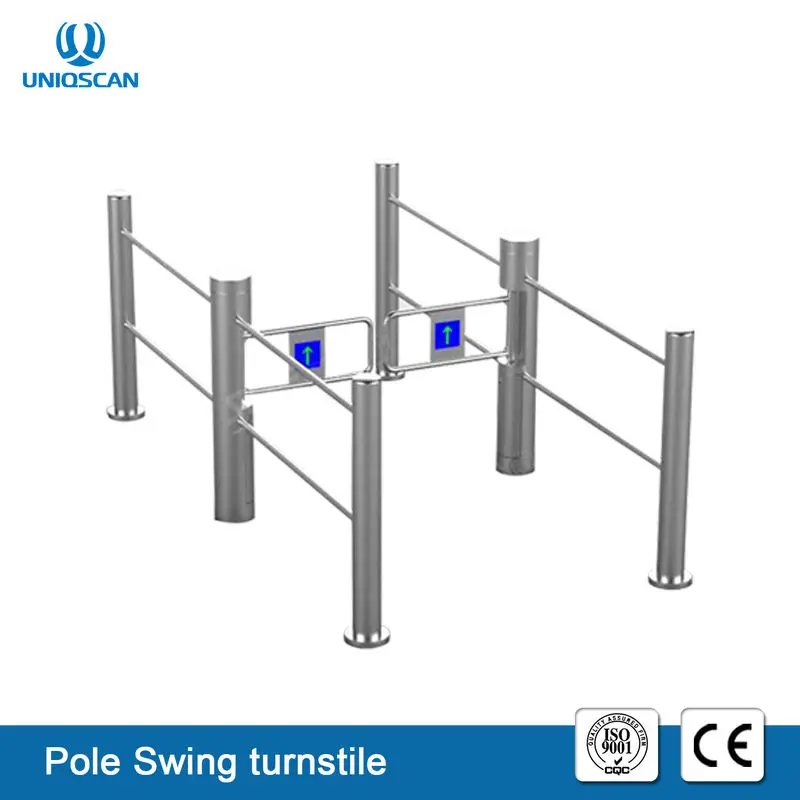

UNIQSCAN 304 stainless steel single moter pole swing turnstile gate
Product Description
1. Fault self-test and alarm functions,convenient user maintenance and using
2. Via the control board Built in a small dish,Programmable devices running status
3. Anti-Pinch mechanical structure,anti-bumps function, when the swing arm reset process meet resistance, within a limited time
automatically stops the motor, the default delay after the reset again (until reset), and the force is very small (≤2Kg )
4. Break into protection function, when the gate signal is not received, the arm automatically locked
5. Relative with a variety of reader device attached,working when receive relay switch signal
6. Remote control and management by the management computer
7. Power-off arm Automatic open,turn on automatically closed, can meet fire safety requirements
8. Pinch function (bridge type four pairs of infrared optional)
9. Accurate logic judgment and infrared reset function (4 or 6 pairs of infrared)
10. Counting function (optional)
Feature
Access control system: Combine with rfid/fingerprint/veins/facial readers, apply to factory, school, dormitory, residential,
construction site.
Ticketing system: Combine with rfid/QR code/barcode readers, apply to public park, tourism area, subway, bus station, air port,dock, play ground, gym, cinema, cantine.
Consumption system: Combine with IC card readers, apply to super market, cantine, gym, subway, bus station.
Time attendance system: Combine with rfid/figerprint facial/veins readers, apply to factory, office, school, etc..
Construction system: Combine with CCTV/LED screens, apply to contruction site for safty.
ESD system: Combine with profession ESD tester for factory, special area entrance.
1.8mm Single Motor Flap Barrier Access Control System Swing Gate Turnstile
Size Information
Product name
swing turnstile gate
Dimension
dia168*1050mm
Material
304 # stainless steel
Tickness
Head: 1.8mm
Input Voltage
AC220±10%,50HZ
Driving motor
24V
Failure-free operation
5 million/time
Weight
35kg
Traffic speed
35 persons/min
Flap Opening/Closing Time
0.4S adjustable
Channel width
≤600mm
Infrared sensor
9 pairs
Operating temperature
-30ºC-70ºC
Communication interface
RS485/TCP/IP
Working environment
indoor and outdoor
Manufacture Specification
Now UNIQSCAN products have CE, ROHS and FCC certifications. We strictly in accordance with the ISO9001 quality standard requirements, and in future, we will continue make efforts to high standard to satisfy our respected customers. Quality is the Life, we’ll always keep in mind.
1.8mm Single Motor Flap Barrier Access Control System Swing Gate Turnstile
1.8mm Single Motor Flap Barrier Access Control System Swing Gate Turnstile
Recommending Styles
1.8mm Single Motor Flap Barrier Access Control System Swing Gate Turnstile
$ 200 - $ 500 Pieces
1 Pieces (MOQ)
1.8mm Single Motor Flap Barrier Access Control System Swing Gate Turnstile
$ 200 - $500 Pieces
1 Pieces (MOQ)
Company Introduction
Shenzhen Unisec Technology Co., Ltd, is a professional security products manufacturer, brand ‘UNIQSCAN’. We have more than 2000 ㎡ metal detector & turnstile factory , and 5000㎡ x-ray baggage scanner cooperation factory in Shenzhen China. We have many years.export experiences and have professional sales team to service our respectable customers from the worldwide. UNIQSCAN owns the intellectual property rights (IPR) to our core technologies, specialized in the development and research in the x-ray image technology, High sensitivity and stability metal detection ,explosive detection ,liquid detection ,and relative integration security solutions .With this ,we are capable to offer OEM & ODM services to create more value for long term cooperation .
1.8mm Single Motor Flap Barrier Access Control System Swing Gate TurnstileOur Services & Strength
1.OEM&ODM Serice 2. 100% quality guarantee 3. 24 hours service 4. Technical support 100% warranty 5. ISO,CE,ROSH 6.NEW policy : Free charge for training service free hotel and food charge for your engineer
